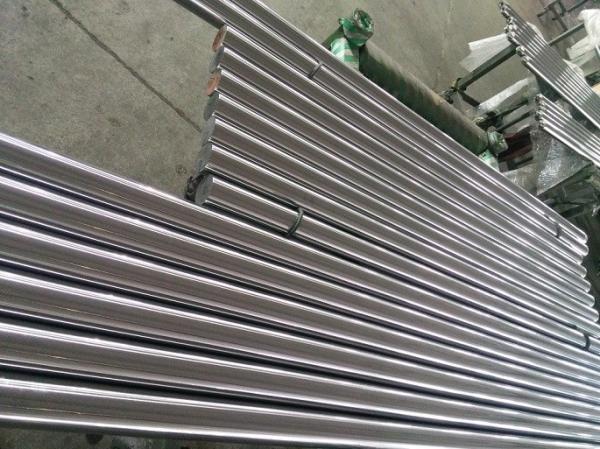

35mm - 140mm Micro Alloyed Steel Rod Tensile Strength Not Less Than 750mpa

Brand Name : HY

Certification : ISO9001:2008

Place of Origin : China

MOQ : 1 tons

Price : Negotiation

Payment Terms : T/T, L/C

Supply Ability : 30tons a day

Delivery Time : 30days

Packaging Details : Anti rust oil to be applied on material and each rod to be packed in paper sleeve

Product name : Micro Alloy Steel Rod

Raw material : Micro Alloy Steel

Surface condition : Chrome plating

Chrome thickness : 20 - 30 micron

Tensile strength : Not less than 750MPa

Yield strength : Not less than 520 Mpa

Contact Now

35mm - 140mm Micro Alloyed Steel Rod Tensile Strength Not Less Than 750mpa

Product Description
1. Turning performance: Turning performance is commensurate to 42CrMo4, 40Cr and CK45 or be
superior to them.
2. Hardness: Hardness is more uniform on the whole cross section than quenched and tempered
42CrMo4, 40Cr and CK45
3. Micro struction: Ferrite and pearlite with fine and uniform grain size.
4. The steel directly directly turning saves the logistics cost
5. Energy conservation: Production no quenched and tempered process greatly saves the energy
consumption.
6. Environments protection: Production no quenched and tempered process meets the requirements of
environmental protection.

Detailed Description

1. MATERIAL: HY4700, HY4520

2. CHEMICAL COMPOSITION(%)

Material	C%	Mn%	Si%	S%	P%	V%	Ni	Cr%	Mo	Cu
HY4700	0.38-0.45	1.20 ~1.60	0.30~0.50	≤0.035	≤0.020	0.05～0.15	≤0.25	0.10～0.20	≤0.15	0.25
HY4520	0.40 ~0.48	0.80 ~1.40	0.15 ~0.35	≤0.035	≤0.035	≤0.15	≤0.25	≤0.25	≤0.15	≤0.25

3. MECHANICAL PROPERTIES

Material		MECHANICAL PROPERTIES					Surface hardness(HBW)
Material		Rm(MPa)	Rel(MPa)	A%	Z%	KU2(J)
HY4700	Φ35 - Φ100	900 - 1100	≥650	≥16	≥35	≥39	270-340
HY4700	＞Φ100 - Φ140	850 - 950	≥600	≥16	≥35	≥39	270-340
HY4520	Φ40 - Φ100	750 - 900	≥520	≥19	≥40	≥39	230-290
HY4520	＞Φ100～Φ140	750 - 900	≥520	≥17	≥35	≥39	230-290

4. SUPPLY CONDITION
Ground and chrome plated
5. CHROME THICKNESS
20 to 30 micron
6. TOLERANCES ON DIA
ISO f7 on the diameter
7.OVALITY
Half of the tolerance ISO f7
8 .SURFACE HARDNESS
850-1150HV (vickers 100g)
9. SURFACE ROUGHNESS
Ra≤0.2 micron and Rt≤2 micron
10. STRAIGHTNESS
≤0.2MM/M
11. COHESION

No craks,breaking or detaching after thermic shock(warming up at 300 celsius degrees

and cooling in water)
12. WELDABILITY
Good
13. CORROSION RESISTANCE
Test in natural salt spray according to ASTM B 117-120hours
Results evaluation according to ISO 4540 RATING 7-10

14 .POROSITY
Test according to ISO 1456/1458 and result yaluation according to ISO 4540 rating 8-10
15. PACKING
Anti rust oil to be applied on material and each rod to be packed in paper sleeve
16. CERTIFICATE
All certificate related with material heat treatment and plating is required
